Protean Full DIY Kit (Prints + Hardware)

US$110.00

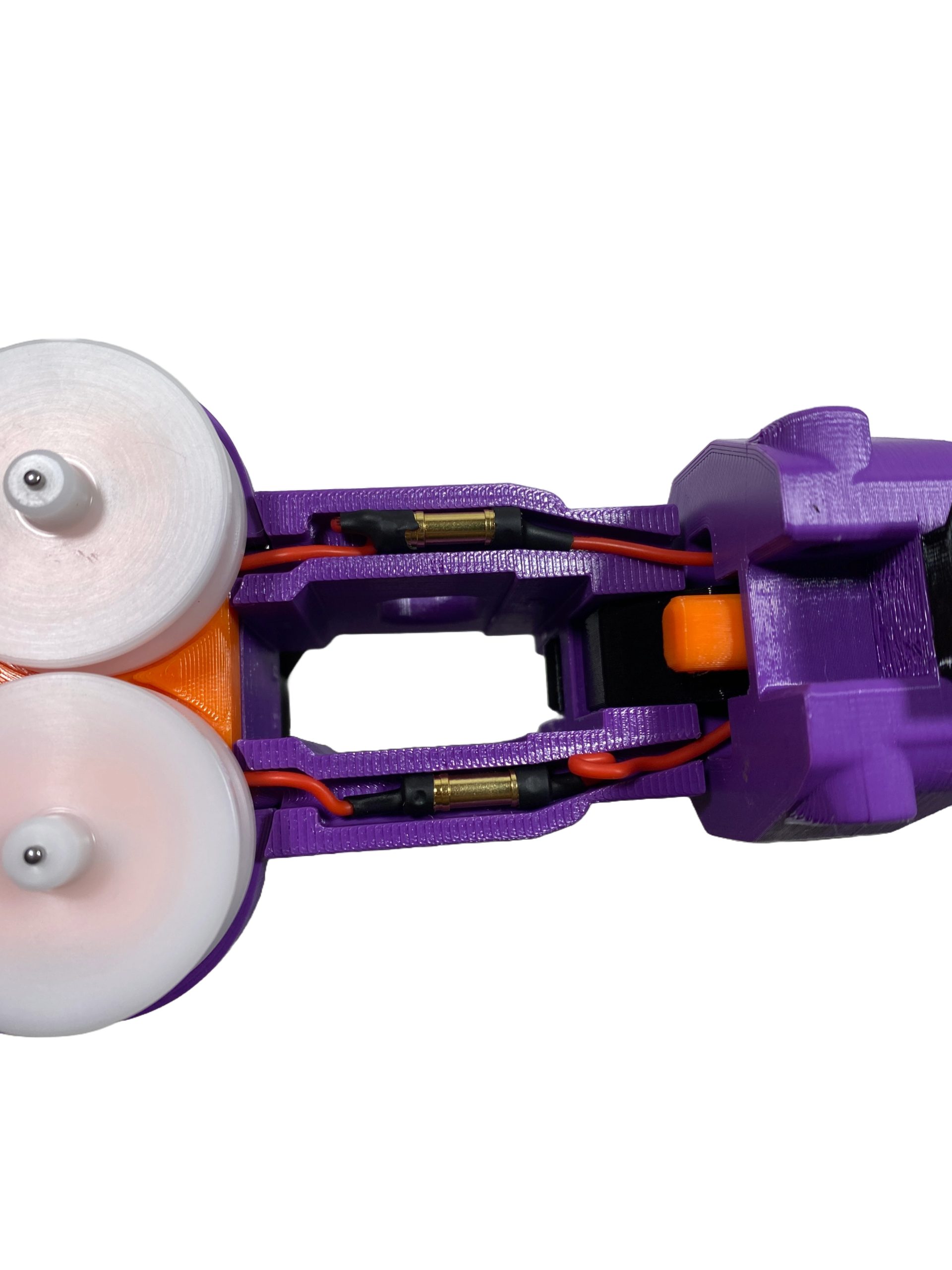

All the hardware and 3D printed parts needed to build a Protean: a highly reconfigurable Nerf hobby-grade flywheel blaster. Swap velocity, stocks, muzzles, semi/full auto tool-lessly.

You can select multiple to be able to quick-swap later
Normally the higher the FPS, the less twist you want.
View Virtual Previewer here: Protean Virtual Configurator
Product total
Options total
Grand total
Please double check your printed part color selection. Colors cannot be changed after checkout.

-

This listing is for Hardware and 3D printed parts. Assembly required

Details by Flygonial: A spiritual successor to the Gryphon, though not a replacement. Leaning further to the direction of modularity, Protean is a highly-configurable, conventional-layout mag-fed flywheel blaster. 7 takedown pins are all that stands between you and being capable of swapping flywheel cages, magwells, stocks, and pusher mechanisms with no additional tools. Not only does this make adjusting the blaster for different game velocity caps trivial, it also makes it possible to swap configurations even between rounds of an event, and in some cases replace broken parts.

– Includes hardware for your choice of Mag Grip type.

Features:
– Quick and easy takedown
– A highly reconfigurable Nerf hobby-grade flywheel blaster
– Swap velocity, stocks, muzzles, semi/full auto tool-lessly
– Available in single and dual stage options for a variety of power options
– Built-in quick swappable PCAR or BCAR
– Multiple stock options
– Optional solenoid version for full auto

Currently supported configurations include:
– Single-stage flywheel cages between 39.5 and 43.5mm
– Dual-stage flywheel cages between 39.5 and 43.5mm
– Talon magwell
– 14.5mm or 14.0mm bore insert
– Straight PCAR or BCAR (angles from 12.5 down to 4 degrees available) bore insert
– 4-to-1 geared pusher mechanism
– Thumbscrew-secured and notch-locking rod stocks
– Fixed battery stock in short and extended lengths
– Buffer tube battery stock
– Solenoid pusher mechanism
– Flatbar Battery Stock with squeeze-to-collapse mech

Compatibility:
– Works with most short darts like these: Worker Gen3+ Darts (High End) – Heavyweight 1.2g – Box of 200
– Magwell works with standard Talon mags such as Worker 15-Round Talon Magazine and Worker Curved Talon Magazine – 18 Round
– Uses 3s lipo and Lipo charger available here: 3s 1300mAh 45-90c LiPO and here: iMAX B6 Lipo Battery Charger

Thanks to Adam Gelder (Banned Blasters) for being our 250/300 FPS motors and flywheels supplier!

Weight .5 lbs
Dimensions 6 × 4 × 4 in
