The LMG designed by MHP (MrHeathPants) is the very first high performance belt fed blaster out there. High rate of fire and high power, this belt-fed flywheeler is a TON of fun to shoot. It ejects empty chain links out the side and lets you feel like a heavy gunner.
Not just another pump action springer of flywheeler. But the highest capacity full auto performance blaster out there.
MHP LMG Features:
– Full auto
– Disintegrating belt ejects empty belt links
– Single trigger both revs and fires
– Spring-loaded pusher makes the blaster jam resistant
– Links can be combined for any length
– Compatible with most short darts
– Designed for a 3s battery, but a 2s can be used to lower FPS and RPM
– Large battery tray can fit most size lipos up to 42mm x 25mm x 124mm
– ALL METAL TT gearbox (not yellow or half metal) WITH custom reinforcement for increased longevity
– STL files to build your own are provided by the designer and a standard hardware version by Frontline Foam
– Original files: Printables
– Frontline Foam easy build files: Free STL File Download Page
– In-progress indepth troubleshooting guide: MHP LMG Troublshooting Guide
– Full video build guide here: MHP LMG Build Guide
Listing Includes:
– All hardware to build an MHP LMG
– Files as a digital download with purchase of hardware
Recommended Tools for Build:
– Soldering iron
– 2 & 2.5mm Hex Keys
– 5/64, 7/64, 13/64, 3/16, 5/16 drill bits
– File set
– Superglue, electrical tape/duck tape, pliers, hammer
Compatibility
– We use this battery: 3s 1300mAh 45-90c LiPO
– We recommend these darts: Worker Gen3+ Darts (High End)

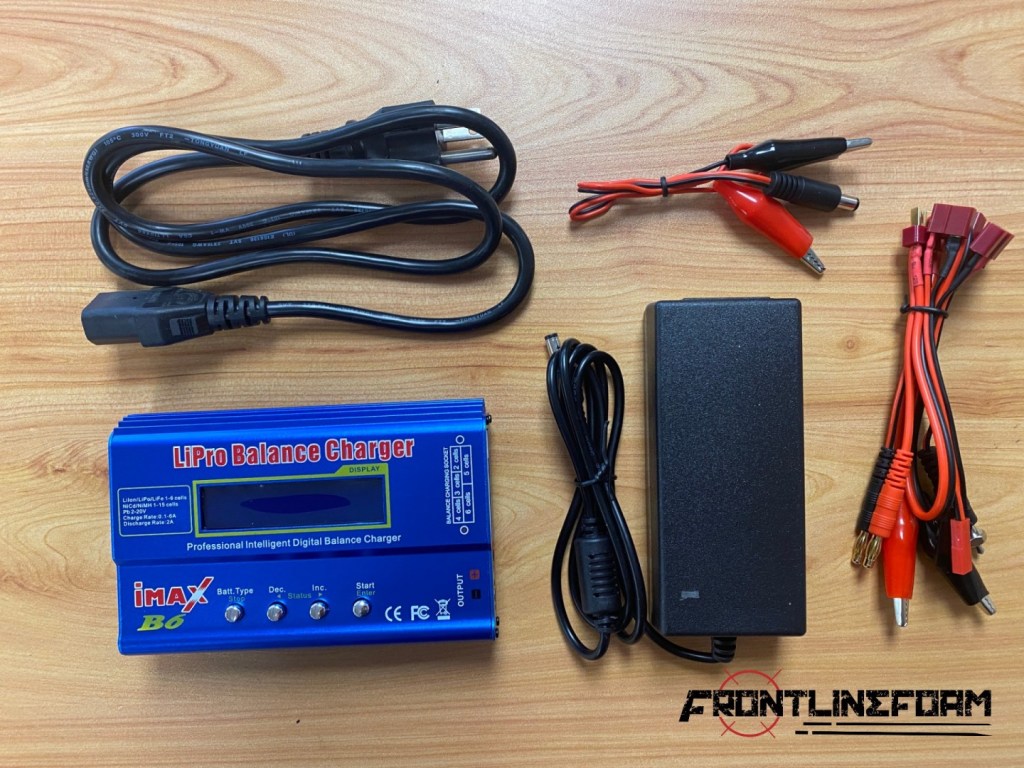

– Battery Charger: iMAX B6 Lipo Battery Charger
Thanks to Adam Gelder (Banned Blasters) for being our 250/300 FPS motors and flywheels supplier!
FPS Cages
– 120 and 160 FPS are Single Stage with Kraken motors and Kepler flywheels.
– 200 FPS is Dual Stage with Kraken Motors with Kepler flywheels
– 250 FPS is Dual Stage with 42k Motors with Banshee flywheels
– 300 FPS is Dual Stage with 42k + 74k Motors with Banshee flywheels
cekoconfrontline (verified owner) –
SO MUCH AWESOME!!! I purchased the max rate of fire with the dual stage options and love it! It always catches everyone’s attention, everybody wants to see it/hold it, and it is so much fun to have on the field. The build was very easy to follow using the youtube video, and all parts were easy to print. I think the most difficult part was removing the 3D printed supports (since I printed all the parts), which wasn’t that bad. Some recommendations I would offer is to test print any piece first to ensure your settings are good and save your gcode files so you can quickly reprint a part in the event you break it. This is an awesome kit and so happy I have one! Frontline Foam is the best for having these perfect worry-free kits!
Travis Evans (verified owner) –
Great kit. Received all the parts I need to build this blaster. Great support from frontline foam. Its a DIY kit. A lot depends on the users abikity to assemble and print the parts correctly.
Alex Godinez (verified owner) –
Springs are not the right size. Worst hardware kit I’ve ever purchased. Source hardware yourself.
